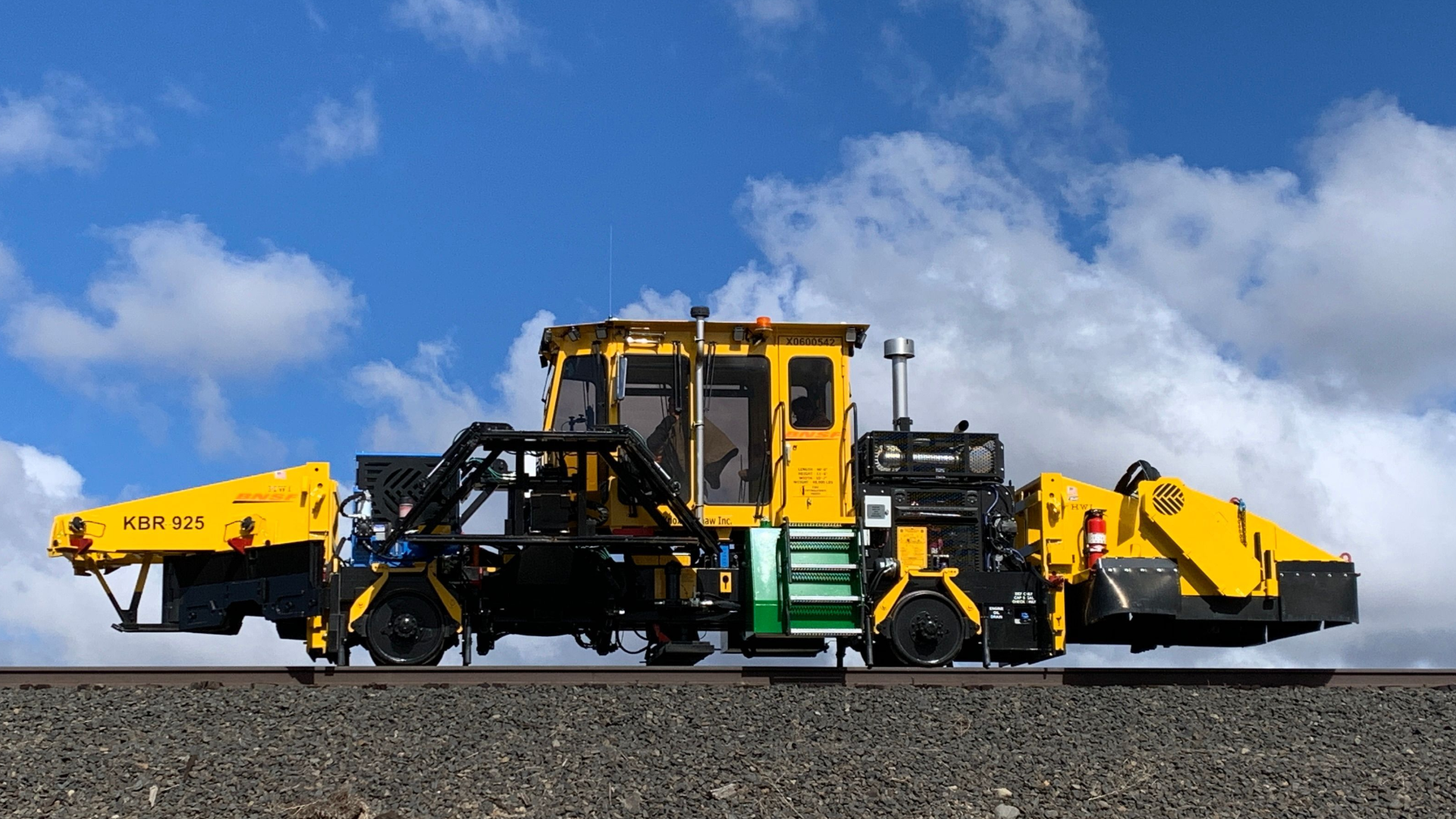

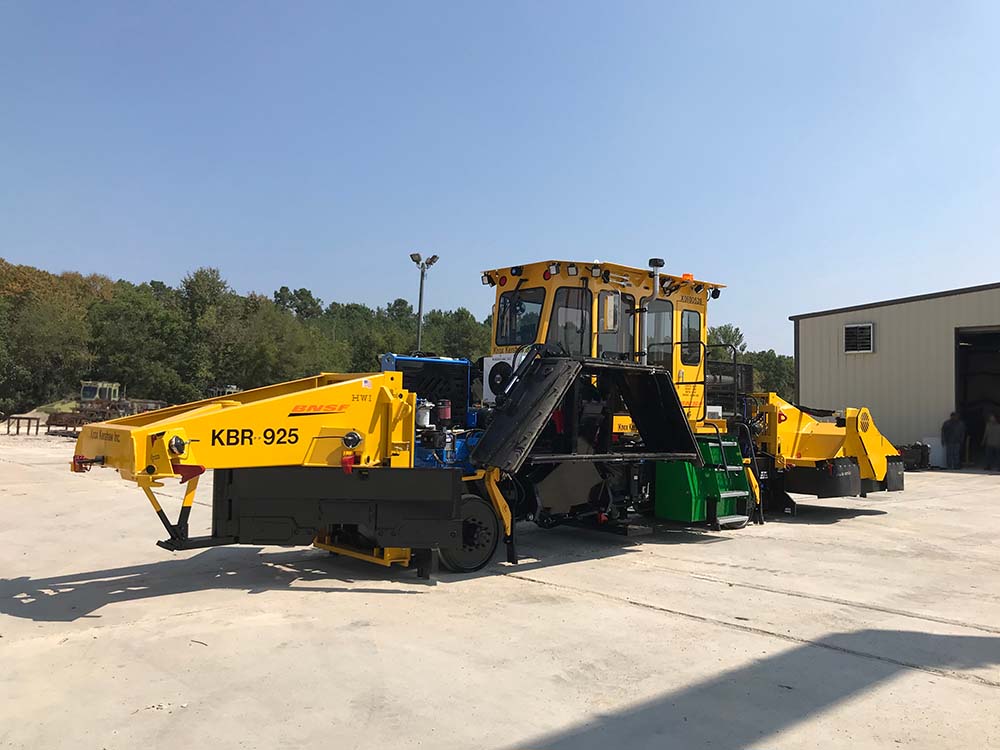

KBR 925

Plow distributes ballast from shoulder to shoulder over the full length of the tie.

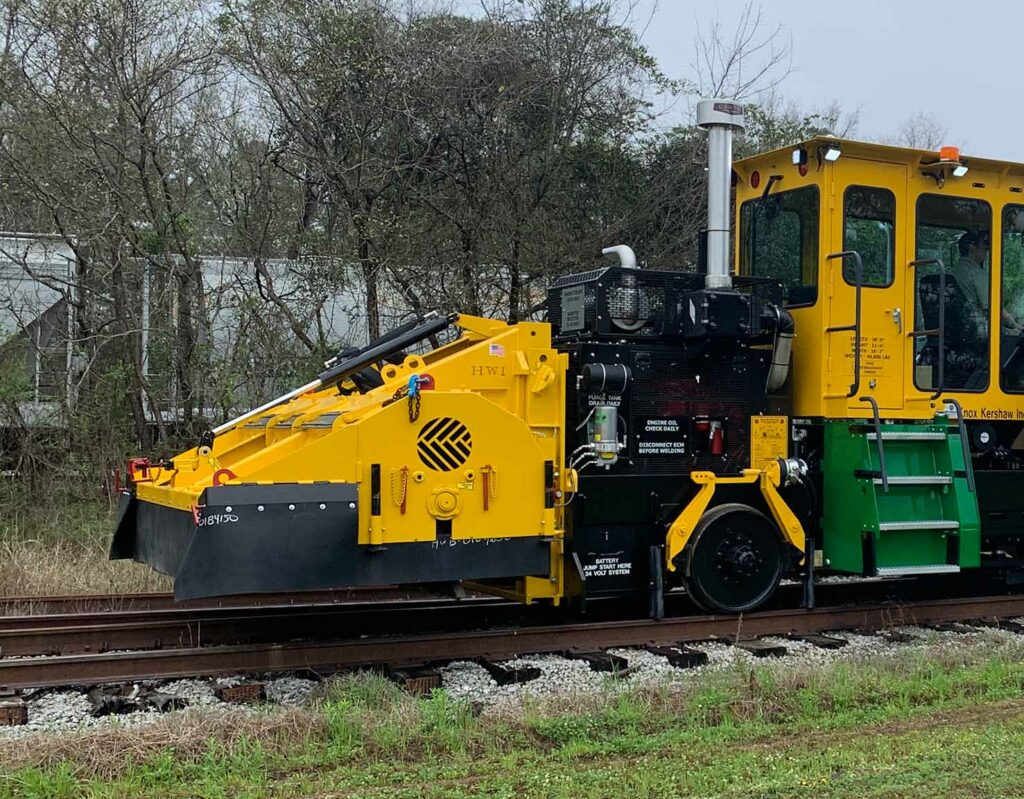

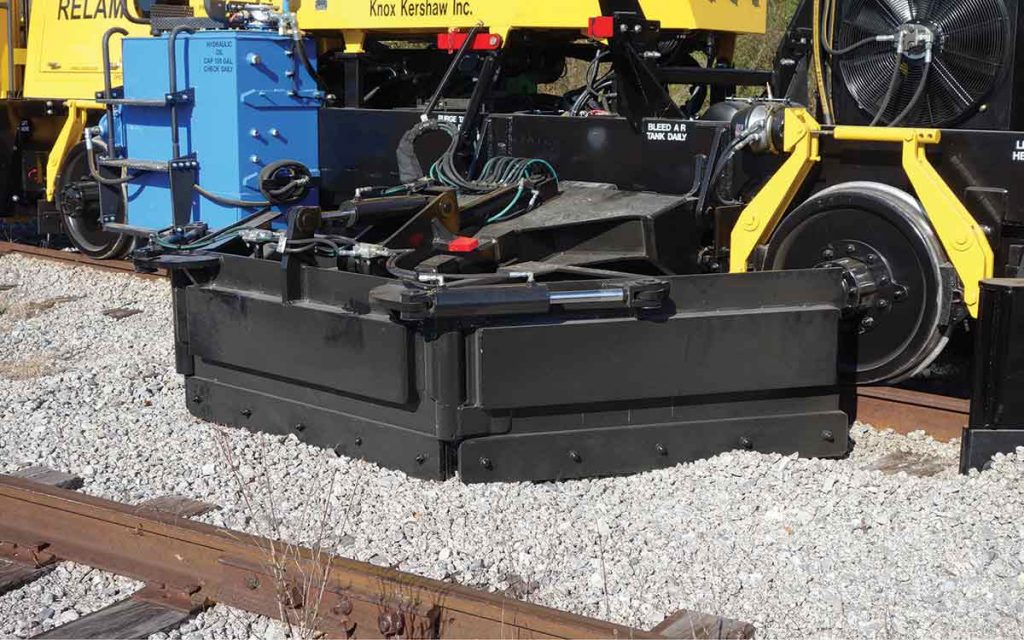

The insulated broom box provides excellent service life.

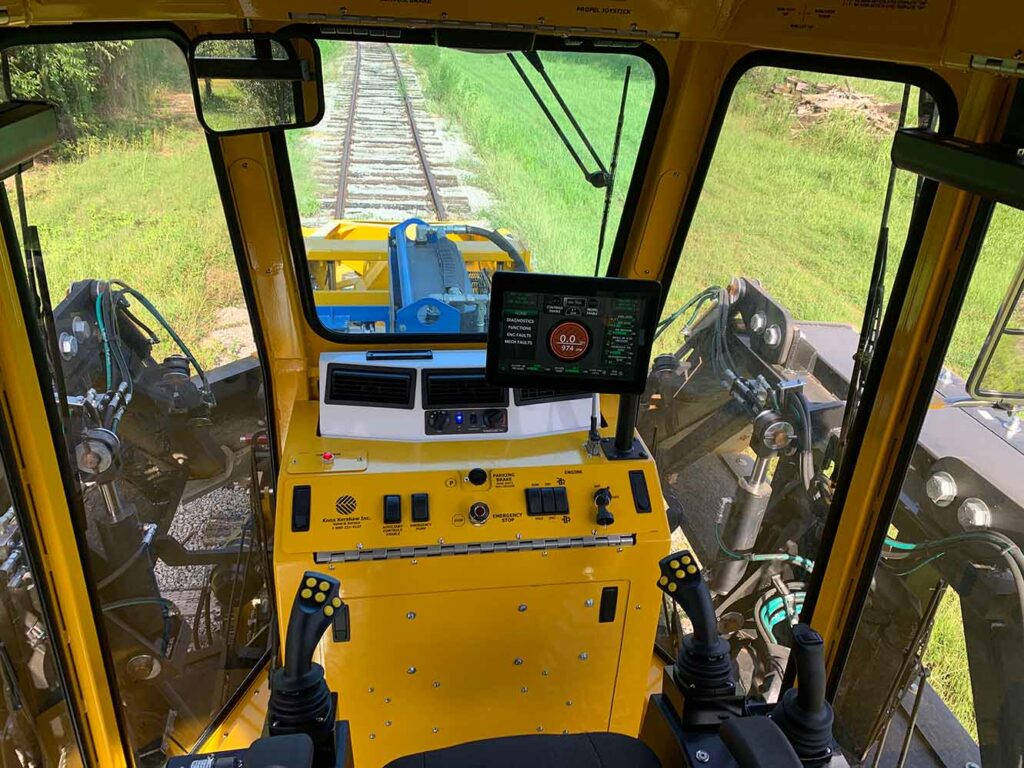

The cab offers unsurpassed operator visibility and Plus 1 operator controls.

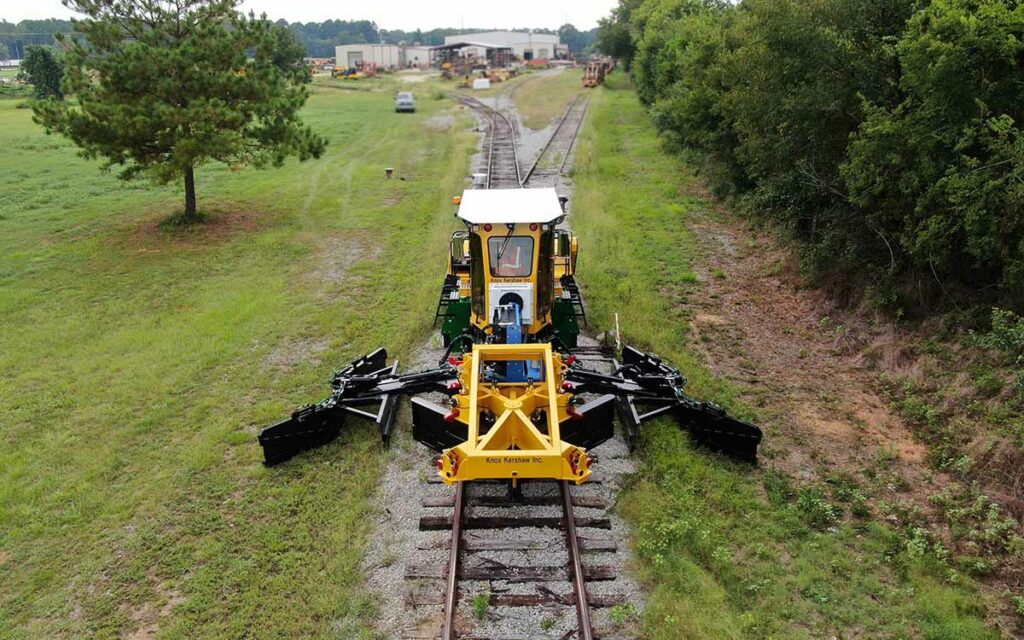

Wing template doors reach out to 13’-0” (3962 mm) from centerline of track to reclaim ballast.

It’s the ideal machine for ballast profiling and final dressing.

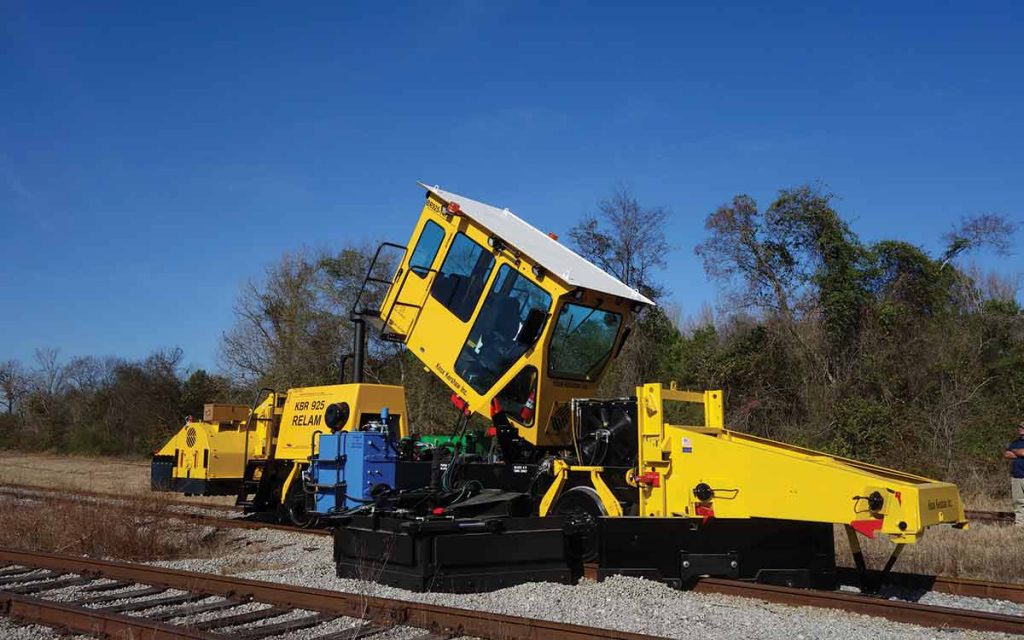

The “clean roof” tilting cab offers easy access to all major components underneath(shown on older model).

Sturdy T-1 steel construction

Technical Specs

LENGTH	38’-0” (11.6m)
WIDTH	10’-7” (3.3m)
HEIGHT	11’-2” (3.4m)
WEIGHT	44,000 lbs. (20T)
WHEELBASE	16’-0”(4.9m)
WH. DIAMETER	28″ (711mm)

SPECIFICATION SHEET (PDF)

Machine Information

The KBR 925 is designed for ballast work on all types of track. Superb visibility in every direction, especially the wing areas, makes it the ideal machine for final profiling. The one pass transfer plow used in conjunction with the wing makes transferring from shoulder to shoulder a one pass operation, while leaving one shoulder profiled. The reversible wings allow work in either direction so no movement is lost. The broom box gives excellent service life, and the standard reversing valve allows ballast to be swept away from switches and road crossings.
