14’ wheelbase frame, 260hp Cummins tier 4 engine, Danfoss hydraulic valves, hydrostatic pump for propel and vane pumps for broom and control functions, Funk 4 speed manual transmission or 6 speed power shift transmission, 28” wheels with clasp style brakes with fail safe brake chambers, mount on truck style axles and a turntable.

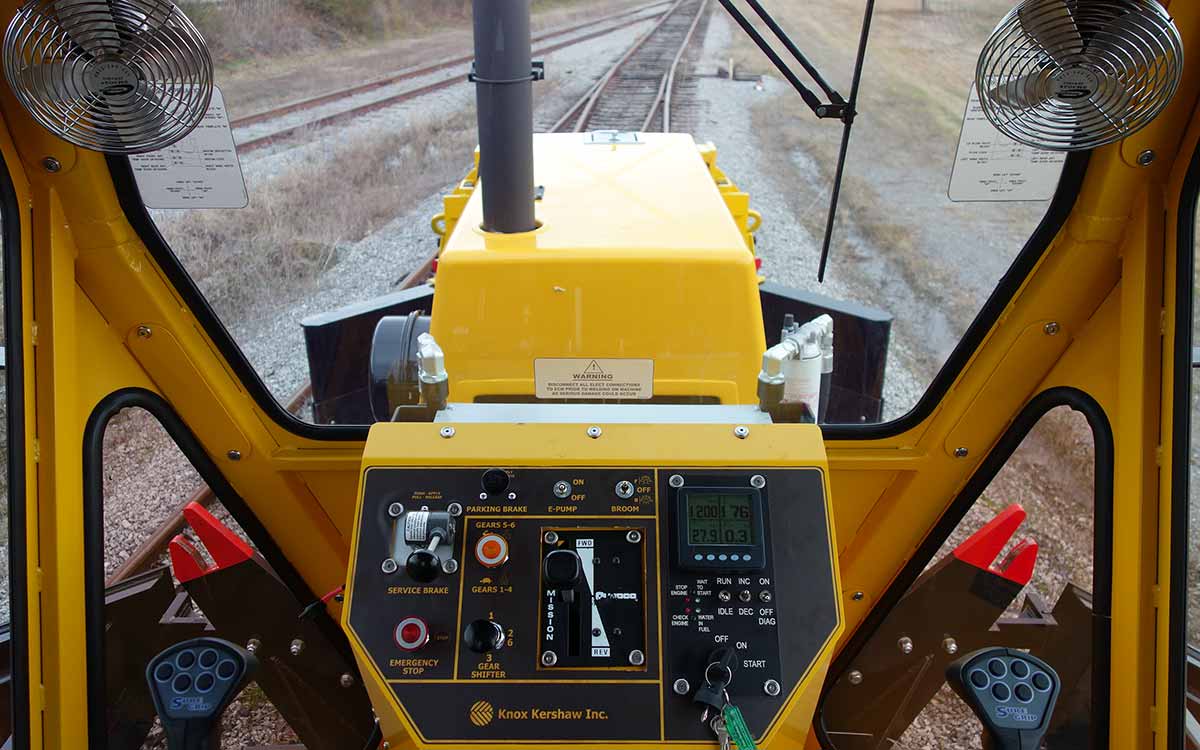

Sound insulated and climate controlled with a hydraulic drive rear mounted air-conditioner, heater and pressurizer. Comfortable, mechanical suspension operator’s seat, joystick controls, tinted windows, front and rear wipers, dual air horns, LED lighting, rearview mirrors. First-Aid kit, fire extinguisher, and jump seat.
110” wide, housing with belt drive, reversing valve, heavy duty baffles, hydraulically raised deflector, 6 flight broom reel with 228 offset Knox Knocker II broom elements attached with the KKI combo broom element clamp. Available options include: water misting dust suppression, broom mounted tool box, concrete broom reel.

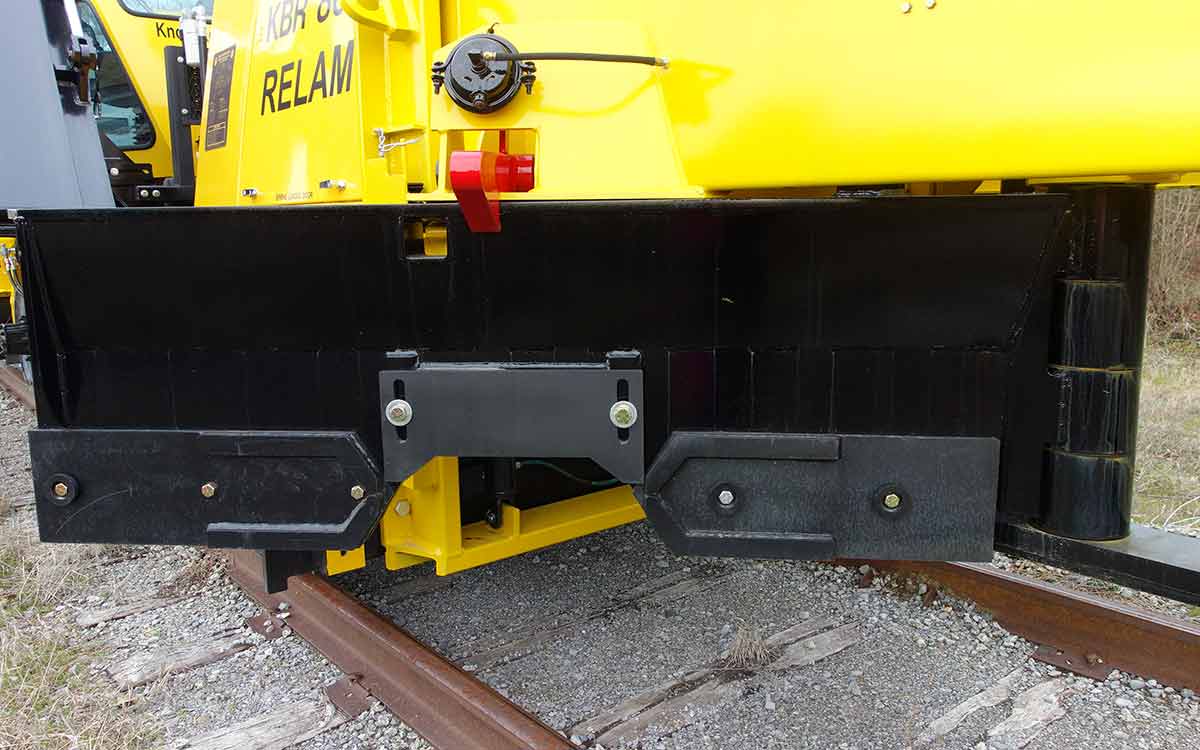

A one pass, fabricated box frame style plow with 1” T-1 plow blades, blade locks and heavy duty grader blades and skid. Blade operation is hydraulically controlled from the cab. Plow incorporates a power down feature for re-railing purposes. Available options include: lockable storage area in the plow frame, concrete grader blade kit, carbide coated skid.

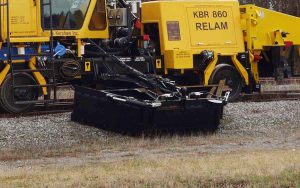

1.5 cu.yd. capacity box style frame, independent hydraulically operated template doors, heavy duty slider boxes, 6” T-1 grader blades and a 13’ reach from center line. Options include: articulated templates, break away template door cylinder mount.
